M1114 up-armoured HMMWV.

The armoured Humvee of Iraq: the M1114 with a factory-built armoured capsule, ballistic glass, a protected turret and the 6.5 turbo-diesel, built in small numbers from 1996 for military police and special forces and in thousands after 2003.

Difflocked · free browser gamePlay & customise vintage 4×4s →Race classic 4×4s, build your own and keep it in your garage. Free, in the browser.
Sources & evidence

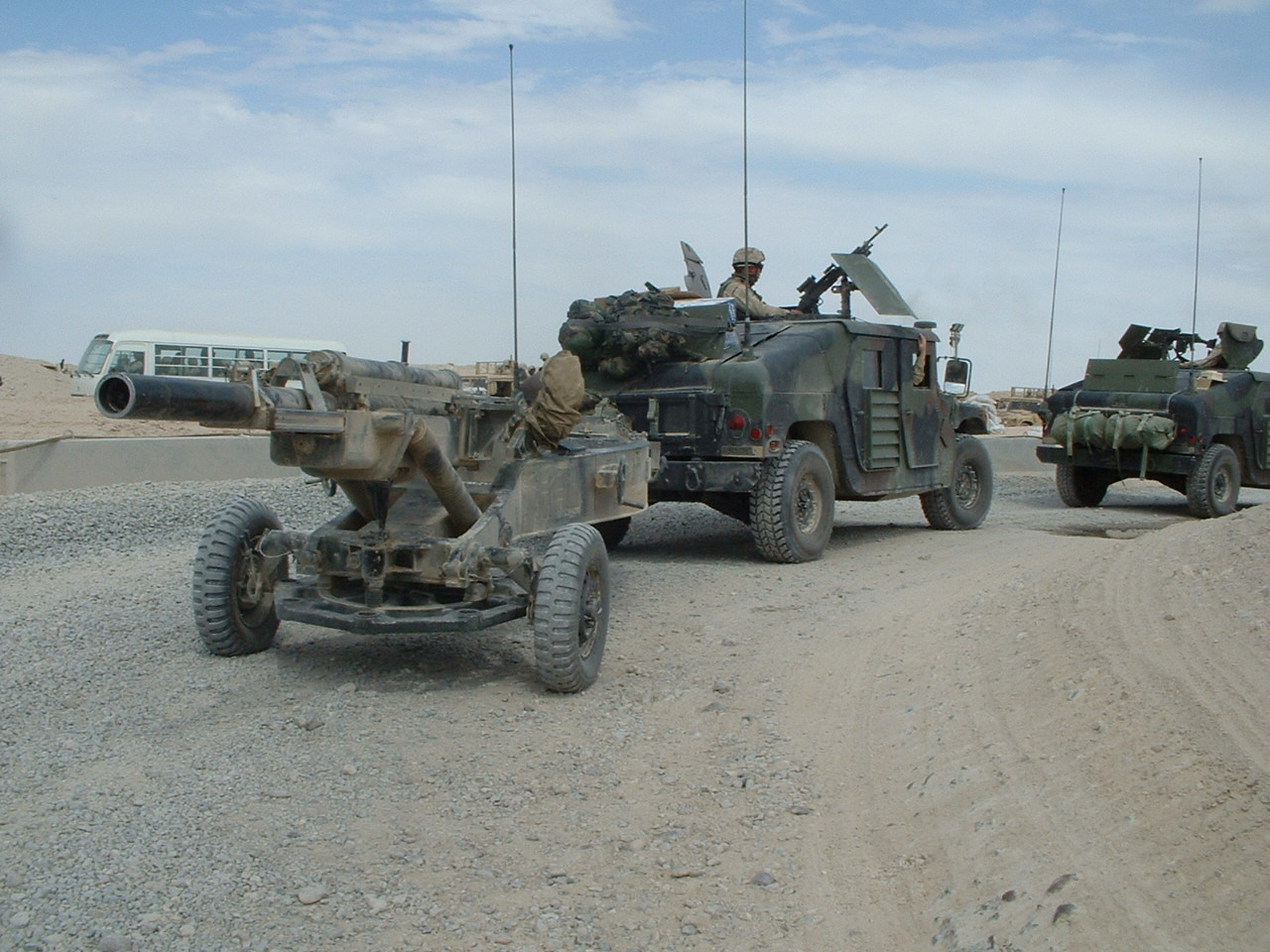

M1114 up-armoured HMMWV — A M102 Howitzer belonging to Battery A, 1-206th FA is towed north from Camp New York Kuwait on the convoy to Camp Taji by an M1114 Up-Armored HMMWVDamon.cluck · CC BY 3.0 ↗
BASE VEHICLEUp-armoured HMMWV: M1114 and the ECVs (1996–)BUILT BYAM GeneralIN SERVICE1996OPERATED INUnited StatesPRODUCTIONPart of about 281,000LAYOUT4 wheels · 130″

The record

Roadside bombs in Iraq turned the M1114 from a specialist vehicle into the standard patrol Humvee; production could not keep up in 2003–04 and field-improvised armour filled the gap until the ECVs and the MRAPs arrived.

Specification

MANUFACTURERAM General ↗
Mishawaka, Indiana
MANUFACTURED1996–present
ENGINE6.5-litre turbo-diesel V8
PRODUCTION RUNPart of about 281,000
COUNTRY OF ORIGINUnited States
OPERATED INUnited States
STATUSin service
RECORD KINDNamed model
MODEL LINEHMMWV
FAMILYHMMWV
WHEELS4
NOMINAL WHEELBASE130″
BODY STYLEm1114
CATEGORYMilitary · US

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Variants & colours

Base model variants

Factory colours

  • Tan 686A (FS 33446)
  • Green 383 (FS 34094)

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.

AI rendering impression

An AI rendering impression starts from a 3D model of this vehicle, which an image model then paints into a scene. It is an artist's impression of the type, made to give a feel for the vehicle in its element — not a photograph, and not a record of any particular vehicle.

Proportions, fittings, markings, colours and the setting can all drift from the original in the process. For the vehicle's actual details, rely on the specification, the photographs and the cited sources on this page.
